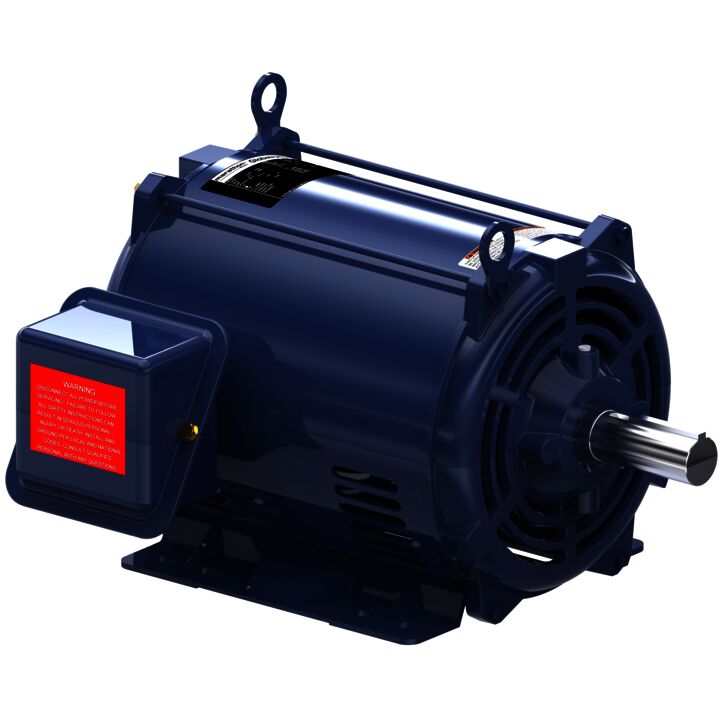

General Purpose Motor, 20 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 3600 & 3000 RPM, 254T Frame, DP
General Purpose Motor, 20 & 20 HP, 3 Ph, 60 & 50 Hz, 230/460 & 200/400 V, 3600 & 3000 RPM, 254T Frame, DP
Part#: 254TTDX16010
Catalog#: E708A
Model#: 254TTDX16010AA
Weight: 247 lb
Your Price: Login is Required
Key Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Motor will accept a C-face kit
- F1 mounting only, cannot reassemble to F2
- Rated 60/50 hertz, 190/380 or 380 volt at next lower horsepower
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 20 & 20 Hp |
| Output KW | Output KW: 14.9 & 14.9 kW | Voltage | Voltage: 230/460 & 200/400 V |
| Speed | Speed: 3535 & 2925 rpm | Service Factor | Service Factor: 1.15 & 1.15 |
| Frame | Frame: 254T | Enclosure | Enclosure: Drip Proof |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 91 & 89.5 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 & 50 Hz |
| Current | Current: 48/24 & 55/27.5 A | Power Factor | Power Factor: 85.7 |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| Design Code | Design Code: B | KVA Code | KVA Code: G |
| Drive End Bearing Size | Drive End Bearing Size: 6309 | Opp Drive End Bearing Size | Opp Drive End Bearing Size: 6207 |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: N | IP Code | IP Code: 12 |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Squirrel Cage Induction Run | Starting Method | Starting Method: Across The Line |
| Poles | Poles: 2 | Rotation | Rotation: Reversible |
| Resistance Main | Resistance Main: .55 Ohms | Mounting | Mounting: Rigid Base |
| Motor Orientation | Motor Orientation: Horizontal | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Rolled Steel |
| Shaft Type | Shaft Type: T | Overall Length | Overall Length: 22.10 in |
| Shaft Diameter | Shaft Diameter: 1.625 in | Shaft Extension | Shaft Extension: 4 in |
| Assembly/Box Mounting | Assembly/Box Mounting: F1 ONLY |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: T |
| Current | Current: 48.0/24.0 A | Synchronous RPM | Synchronous RPM: 3600 & 3000 rpm |
| Frequency | Frequency: 60 Hz | Speed | Speed: 3535 rpm |
| Connection Drawing | Connection Drawing: 80022802 | Outline Drawing | Outline Drawing: 037977-1300 |
| Voltage | Voltage: 230/460 V | Output KW | Output KW: 14.9 kW |
| Output HP | Output HP: 20 Hp | Frame Size | Frame Size: 254 |
| Torque UOM | Torque UOM: LB-FT | Efficiency | Efficiency: 91 % |
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 115% |
|---|---|---|---|---|---|---|
| % of Rated Load: Current (Amps) | 0%: 8.60 | 25%: 10.50 | 50%: 14.10 | 75%: 19.00 | 100%: 24.00 | 115%: 27.60 |
| % of Rated Load: Rated Output (KW) | 0%: 0.53 | 25%: 4.60 | 50%: 8.50 | 75%: 12.50 | 100%: 16.40 | 115%: 18.90 |
| % of Rated Load: Efficiency (%) | 0%: 0.0 | 25%: 81.5 | 50%: 87.9 | 75%: 90.2 | 100%: 91.0 | 115%: 91.2 |
| % of Rated Load: Power Factor (%) | 0%: 0.0 | 25%: 54.5 | 50%: 75.5 | 75%: 83.0 | 100%: 85.7 | 115%: 87.5 |
| % of Rated Load: Speed (RPM) | 0%: 3,598 | 25%: 3,585 | 50%: 3,569 | 75%: 3,550 | 100%: 3,535 | 115%: 3,525 |
| % of Rated Load: Temp. Rise @ FL | 0%: 0.0 | 25%: 0.0 | 50%: 0.0 | 75%: 0.0 | 100%: 30.0 | 115%: 40.0 |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|---|---|---|---|---|---|---|---|---|
| Curvepoint: No Load | Current (Amps): 8.60 | Current (%): 36.0 | Torque (ft-lbs): 0.00 | Torque (%): 0.0 | Speed (RPM): 3,600 | Rated Output (KW): 0.53 | Power Factor (%): 7.0 | Rated Output (Hp): 20.00 |
| Curvepoint: Locked-Rotor | Current (Amps): 144.00 | Current (%): 600.0 | Torque (ft-lbs): 44.00 | Torque (%): 148.0 | Speed (RPM): 0 | Rated Output (KW): 0.00 | Power Factor (%): 31.0 | Rated Output (Hp): 20.00 |
| Curvepoint: Break-Down | Current (Amps): 93.00 | Current (%): 388.0 | Torque (ft-lbs): 88.00 | Torque (%): 296.0 | Speed (RPM): 3,200 | Rated Output (KW): 0.00 | Power Factor (%): 71.0 | Rated Output (Hp): 20.00 |
| Curvepoint: Pull-Up | Current (Amps): 140.00 | Current (%): 583.0 | Torque (ft-lbs): 42.00 | Torque (%): 141.0 | Speed (RPM): 900 | Rated Output (KW): 0.00 | Power Factor (%): 31.5 | Rated Output (Hp): 20.00 |
| Curvepoint: Full Load | Current (Amps): 24.00 | Current (%): 100.0 | Torque (ft-lbs): 29.70 | Torque (%): 100.0 | Speed (RPM): 3,535 | Rated Output (KW): 16.40 | Power Factor (%): 85.7 | Rated Output (Hp): 20.00 |
Efficiency
| Country | Complies with standards |
|---|---|
| Country: United States | Complies with standards: check_circle |
| Country: Canada | Complies with standards: cancel |
| Country: Mexico | Complies with standards: check_circle |
| Country: Australia | Complies with standards: cancel |
| Country: Brazil | Complies with standards: check_circle |
| Country: Chile | Complies with standards: cancel |
| Country: China | Complies with standards: cancel |
| Country: Europe | Complies with standards: cancel |
| Country: Japan | Complies with standards: cancel |
| Country: New Zealand | Complies with standards: cancel |
| Country: Saudi Arabia | Complies with standards: check_circle |
| Country: South Korea | Complies with standards: check_circle |
