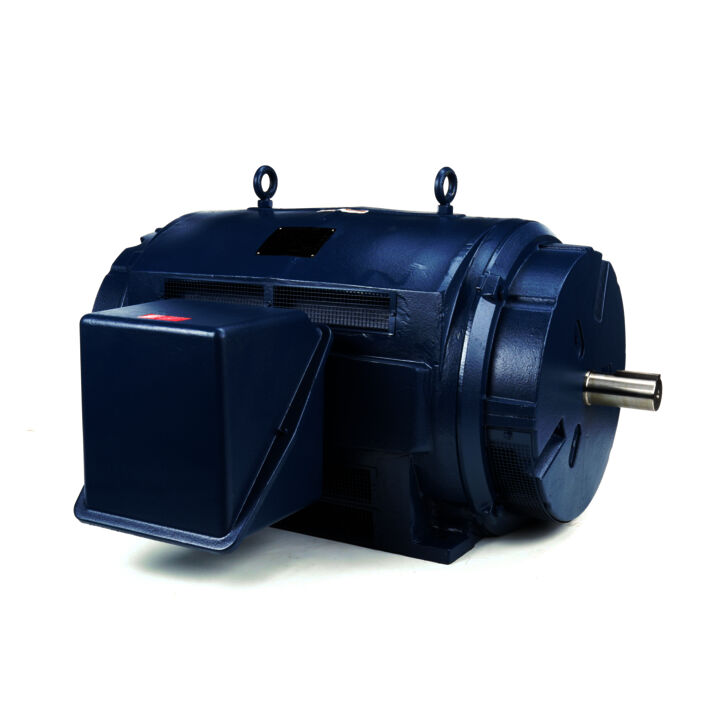

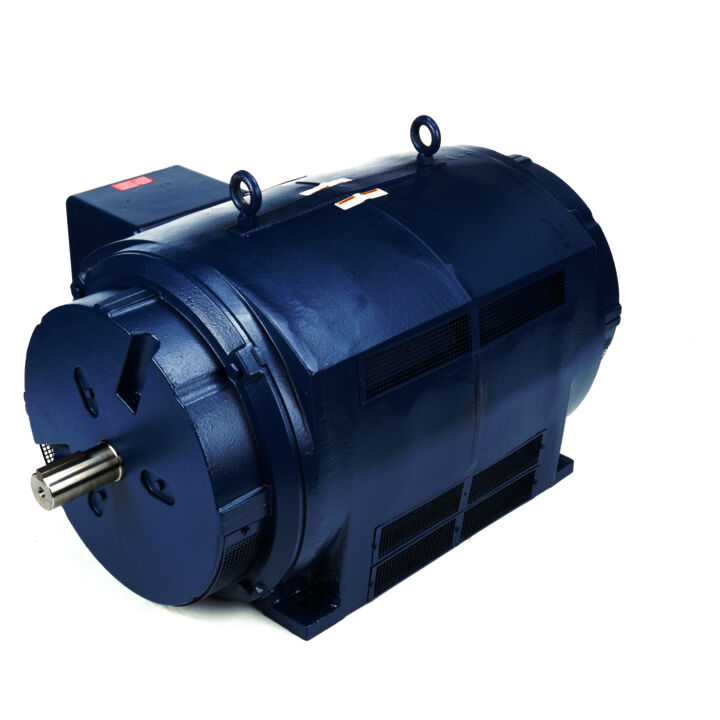

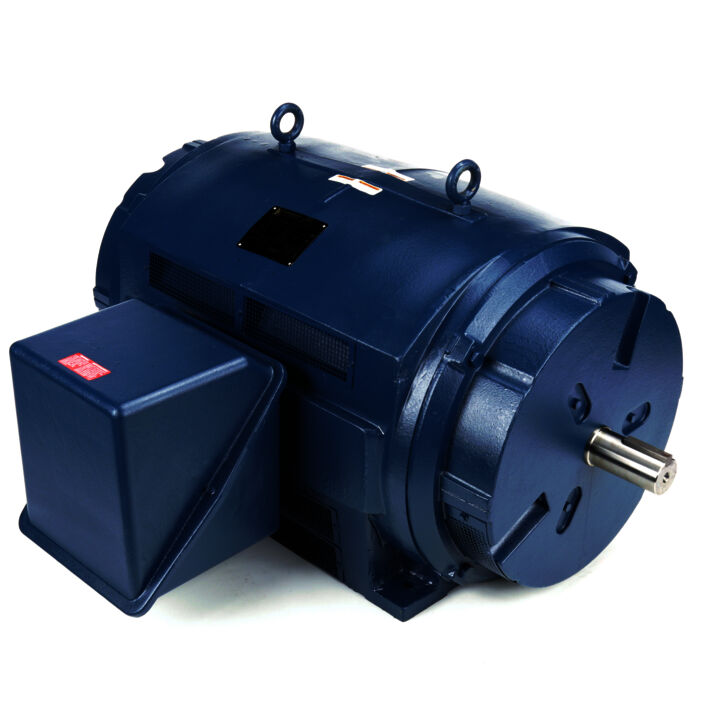

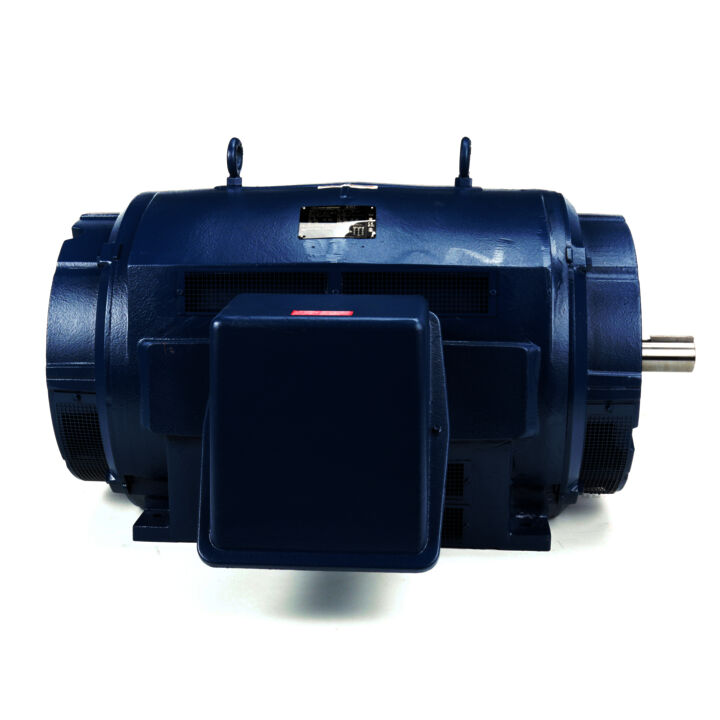

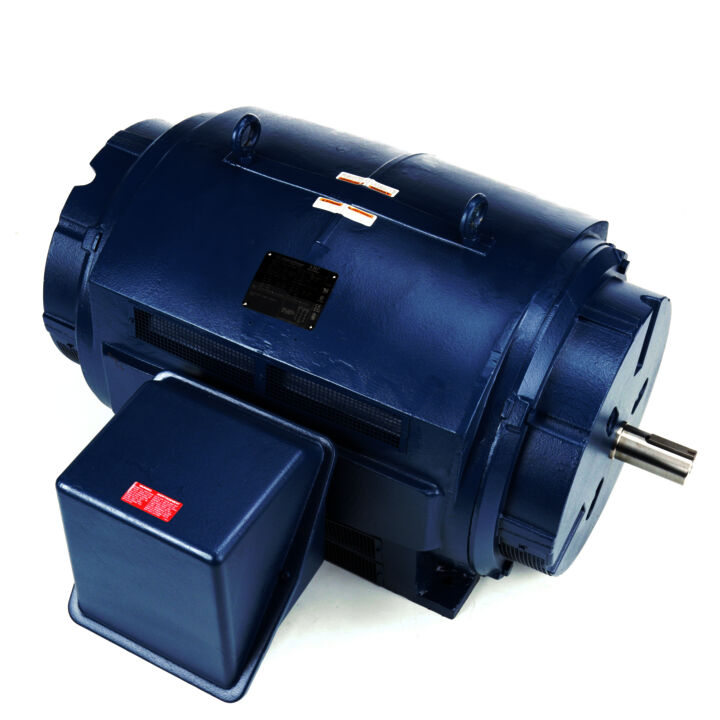

General Purpose Motor, 450 & 400 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 3600 & 3000 RPM, 449TS Frame, DP
XRI® General Purpose General Purpose Motor, 450 & 400 HP, 3 Ph, 60 & 50 Hz, 460 & 380 V, 3600 & 3000 RPM, 449TS Frame, DP - 449TSTDN16004
Part#: 449TSTDN16004
Catalog#: U795
Model#: 449TSTDN16004CA
Weight: 2523 lb
Your Price: Login is Required
Key Features
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Motor will accept a C-face kit
- 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting
Specifications
| Phase | Phase: 3 | Output HP | Output HP: 450 & 400 Hp |
| Output KW | Output KW: 340.0 & 300.0 kW | Voltage | Voltage: 460 & 380 V |
| Speed | Speed: 3570 & 2965 rpm | Service Factor | Service Factor: 1.15 & 1.15 |
| Frame | Frame: 449TS | Enclosure | Enclosure: Drip Proof |
| Thermal Protection | Thermal Protection: No Protection | Efficiency | Efficiency: 96.2 & 95.4 % |
| Ambient Temperature | Ambient Temperature: 40 °C | Frequency | Frequency: 60 & 50 Hz |
| Current | Current: 485 & 530 A | Power Factor | Power Factor: 90 |
| Duty | Duty: Continuous | Insulation Class | Insulation Class: F |
| Design Code | Design Code: B | KVA Code | KVA Code: F |
| Drive End Bearing Size | Drive End Bearing Size: 6314 | Opp Drive End Bearing Size | Opp Drive End Bearing Size: 6314 |
| UL | UL: Recognized | CSA | CSA: Y |
| CE | CE: Y | IP Code | IP Code: 12 |
| Number of Speeds | Number of Speeds: 1 |
| Electrical Type | Electrical Type: Squirrel Cage Induction Run | Starting Method | Starting Method: Part Wdg Start & Wye Start Delta Run |
| Poles | Poles: 2 | Rotation | Rotation: Reversible |
| Resistance Main | Resistance Main: .0086 Ohms | Mounting | Mounting: Rigid Base |
| Motor Orientation | Motor Orientation: Horizontal | Drive End Bearing | Drive End Bearing: Ball |
| Opp Drive End Bearing | Opp Drive End Bearing: Ball | Frame Material | Frame Material: Cast Iron |
| Shaft Type | Shaft Type: TS | Overall Length | Overall Length: 44.50 in |
| Frame Length | Frame Length: 29.38 in | Shaft Diameter | Shaft Diameter: 2.375 in |
| Shaft Extension | Shaft Extension: 5.02 in | Assembly/Box Mounting | Assembly/Box Mounting: F1/F2 CAPABLE |
| Service Factor | Service Factor: 1.15 | Frame Suffix | Frame Suffix: TS |
| Current | Current: 485 A | Synchronous RPM | Synchronous RPM: 3600 & 3000 rpm |
| Frequency | Frequency: 60 Hz | Speed | Speed: 3570 rpm |
| Connection Drawing | Connection Drawing: A-EE7300BH | Outline Drawing | Outline Drawing: B-SS516498-2938 |
| Voltage | Voltage: 460 V | Output KW | Output KW: 340 kW |
| Output HP | Output HP: 450 Hp | Frame Size | Frame Size: 449 |
| Torque UOM | Torque UOM: LB-FT | Efficiency | Efficiency: 96.2 % |
| Packaged Length | Packaged Length: 56.00 IN | Weight | Weight: 2523.00 LB |
| UPC | UPC: 722856013583 | Packaged Width | Packaged Width: 46.00 IN |
| HTC | HTC: 8501.53.8040 | Country of Origin | Country of Origin: United States of America |
| Packaged Height | Packaged Height: 31.18 IN |
| % of Rated Load | 0% | 25% | 50% | 75% | 100% | 115% | 125% |
|---|---|---|---|---|---|---|---|
| % of Rated Load: Current (Amps) | 0%: 115.00 | 25%: 162.00 | 50%: 258.00 | 75%: 368.00 | 100%: 485.00 | 115%: 560.00 | 125%: 610.00 |
| % of Rated Load: Rated Output (KW) | 0%: 5.50 | 25%: 90.00 | 50%: 175.00 | 75%: 262.00 | 100%: 349.00 | 115%: 403.00 | 125%: 440.00 |
| % of Rated Load: Efficiency (%) | 0%: 0.0 | 25%: 94.5 | 50%: 95.8 | 75%: 96.2 | 100%: 96.2 | 115%: 96.2 | 125%: 95.8 |
| % of Rated Load: Power Factor (%) | 0%: 4.0 | 25%: 68.0 | 50%: 84.0 | 75%: 88.0 | 100%: 90.0 | 115%: 90.0 | 125%: 90.0 |
| % of Rated Load: Speed (RPM) | 0%: 3,600 | 25%: 3,592 | 50%: 3,585 | 75%: 3,578 | 100%: 3,570 | 115%: 3,565 | 125%: 3,560 |
| % of Rated Load: Temp. Rise @ FL | 0%: 0.0 | 25%: 0.0 | 50%: 0.0 | 75%: 0.0 | 100%: 65.0 | 115%: 85.0 | 125%: 0.0 |
| % of Rated Load: Torque (ft-lbs) | 0%: 0.00 | 25%: 165.00 | 50%: 330.00 | 75%: 495.00 | 100%: 662.00 | 115%: 762.00 | 125%: 829.00 |
| Curvepoint | Current (Amps) | Current (%) | Torque (ft-lbs) | Torque (%) | Speed (RPM) | Rated Output (KW) | Power Factor (%) | Rated Output (Hp) |
|---|---|---|---|---|---|---|---|---|
| Curvepoint: 1/3 | Current (Amps): 2,500.00 | Current (%): | Torque (ft-lbs): 725.00 | Torque (%): | Speed (RPM): 1,200 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 450.00 |
| Curvepoint: Break-Down | Current (Amps): 1,700.00 | Current (%): | Torque (ft-lbs): 1,550.00 | Torque (%): 230.0 | Speed (RPM): 3,435 | Rated Output (KW): | Power Factor (%): 67.0 | Rated Output (Hp): 450.00 |
| Curvepoint: Full Load | Current (Amps): 485.00 | Current (%): 100.0 | Torque (ft-lbs): 662.00 | Torque (%): 100.0 | Speed (RPM): 3,570 | Rated Output (KW): | Power Factor (%): 90.0 | Rated Output (Hp): 450.00 |
| Curvepoint: Pull-Up | Current (Amps): 2,300.00 | Current (%): | Torque (ft-lbs): 725.00 | Torque (%): | Speed (RPM): 1,800 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 450.00 |
| Curvepoint: No Load | Current (Amps): 115.00 | Current (%): | Torque (ft-lbs): 0.00 | Torque (%): 0.0 | Speed (RPM): 3,600 | Rated Output (KW): | Power Factor (%): 4.0 | Rated Output (Hp): 450.00 |
| Curvepoint: 2/3 | Current (Amps): 2,100.00 | Current (%): | Torque (ft-lbs): 875.00 | Torque (%): | Speed (RPM): 2,400 | Rated Output (KW): | Power Factor (%): | Rated Output (Hp): 450.00 |
| Curvepoint: Locked-Rotor | Current (Amps): 2,650.00 | Current (%): | Torque (ft-lbs): 840.00 | Torque (%): 125.0 | Speed (RPM): 0 | Rated Output (KW): | Power Factor (%): 28.0 | Rated Output (Hp): 450.00 |
