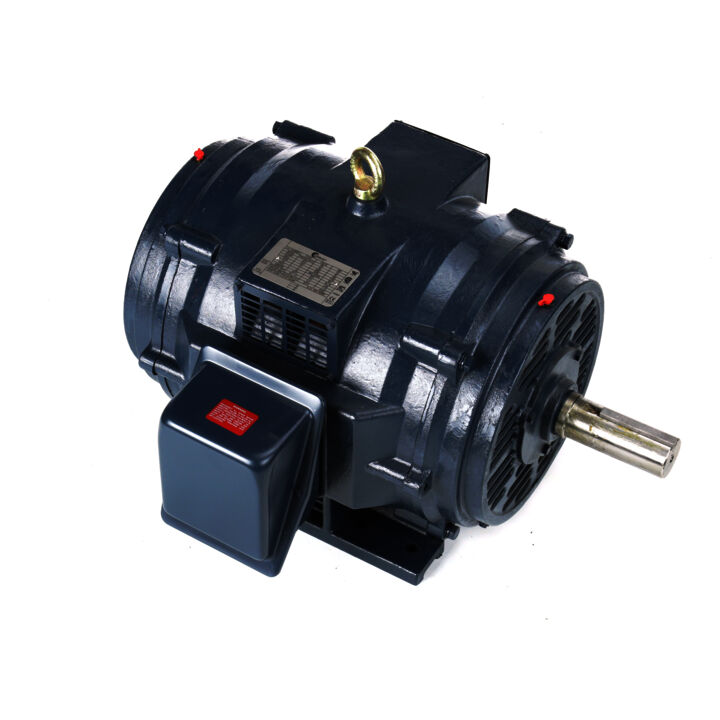

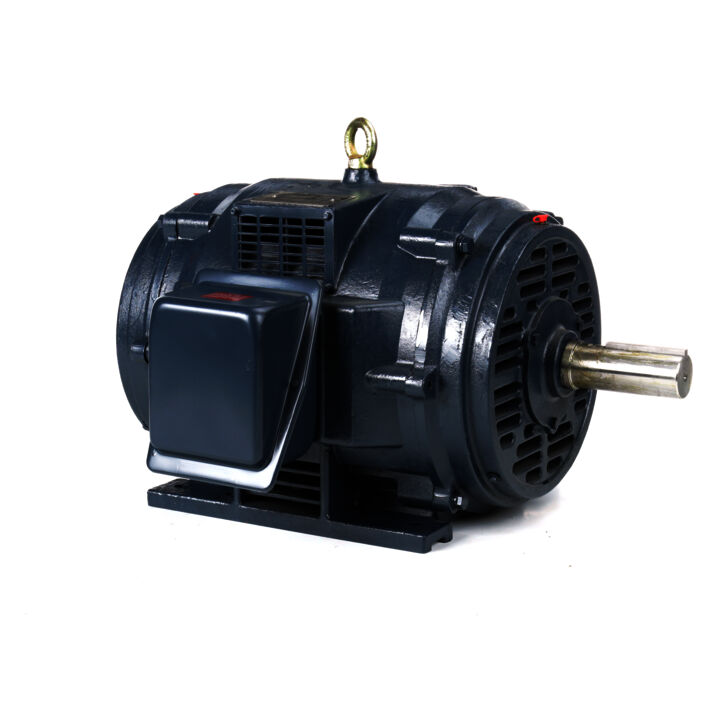

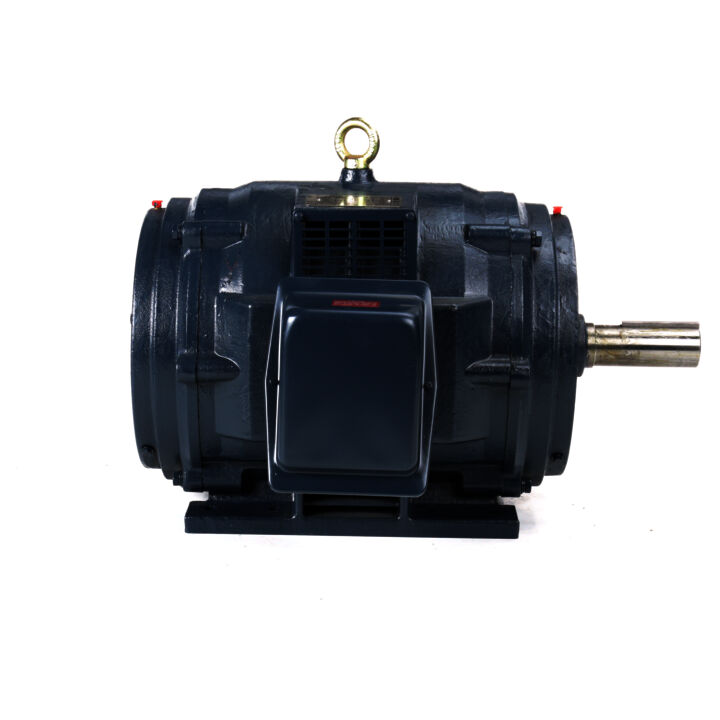

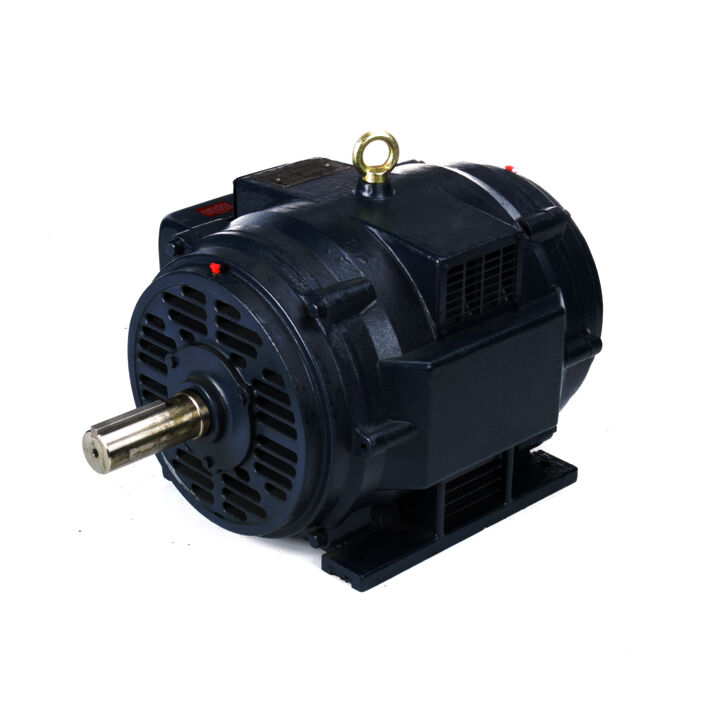

General Purpose Motor, 40 HP, 3 Ph, 60 Hz, 200 V, 1800 RPM, 324T Frame, ODP - TO155

Part#: TO155

Catalog#: TO155

Weight: 616 lb

location_on Where to Buy

Key Features

  • Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2064
  • Inverter duty 10:1 variable torque and 2:1 constant torque
  • 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power
  • Standard assembly F1, reversible to F2 assembly
  • Dual frame mounting holes
  • Will become build-up item when current stock is gone

Specifications

Phase Phase: 3 Output HP Output HP: 40 Hp
Output KW Output KW: 29.8 kW Voltage Voltage: 200 V
Speed Speed: 1780 rpm Service Factor Service Factor: 1.15
Frame Frame: 324T Enclosure Enclosure: Open Drip Proof
Thermal Protection Thermal Protection: No Protection Ambient Temperature Ambient Temperature: 40 °C
Frequency Frequency: 60 Hz Current Current: 109.25 A
Duty Duty: Continuous Insulation Class Insulation Class: F
UL UL: Recognized CSA CSA: Y
CE CE: Y Number of Speeds Number of Speeds: 1
Electrical Type Electrical Type: POLYPHASE Starting Method Starting Method: Across The Line
Poles Poles: 4 Rotation Rotation: Reversible
Mounting Mounting: Rigid Base Drive End Bearing Drive End Bearing: Ball
Opp Drive End Bearing Opp Drive End Bearing: Ball Frame Material Frame Material: Cast Iron
Shaft Type Shaft Type: Keyed Overall Length Overall Length: 28.55 in
Frame Length Frame Length: 14.56 in Shaft Diameter Shaft Diameter: 2.125 in
Shaft Extension Shaft Extension: 5.25 in
Service Factor Service Factor: 1.15 Frame Suffix Frame Suffix: T
Synchronous RPM Synchronous RPM: 1800 rpm Frequency Frequency: 60 Hz
Speed Speed: 1780 rpm Connection Drawing Connection Drawing: A-EE7300
Outline Drawing Outline Drawing: TO155-S01 Voltage Voltage: 200 V
Output KW Output KW: 29.8 kW Output HP Output HP: 40 Hp
Frame Size Frame Size: 324 Packaged Length Packaged Length: 33.28 IN
Weight Weight: 616.00 LB UPC UPC: 786674063083
Packaged Width Packaged Width: 27.76 IN Country of Origin Country of Origin: China
Packaged Height Packaged Height: 28.15 IN

Efficiency

Information not available at the moment. Please check back later!
